Access Control
Edge Data Center consists of advanced access control technology, including a biometric reader connected to a CMC unit, and electromagnetic locks on rack doors to admit authorized personnel only.
Accelerating into the future
with Edge DC. Your Key to
Staying Ahead
Ready-to-Deploy, Standardised, and Scalable
Edge Data Center
Solutions
Enquire Now

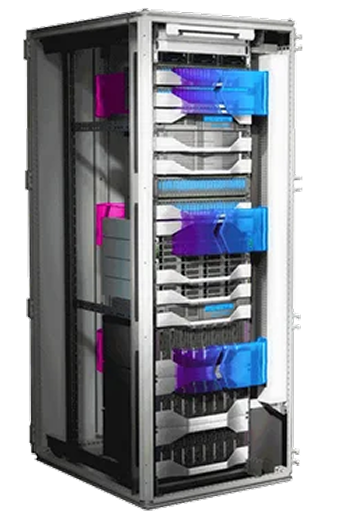

Drive Your Success with the EDGE Advantage
Remote Monitoring & Management
The intelligent monitoring solution collects critical data from network-connected devices, access control, temperature, humidity, door sensors, water leak and other dry contact sensors, sending automated alerts and messages.
“Zero U” Closed Loop Cooling System
Closed loop cooling regulates server inlet temperature and offers a cooling capacity of 3.5/7kW in (N+N) configuration.
Intelligent Fire Detection & Suppression System
Edge Data Center features a 1U rack-mounted intelligent fire suppression system powered by Novec 1230, a clean agent-based modular type fire suppression system.
Uninterrupted Power Supply
The Edge DC has a rack mounted UPS with 95% efficiency, offering a battery backup of 15-20 minutes.
Intelligent Power Distribution Unit
The intelligent Power Distribution Unit (PDU) offers data center professionals remote network access to real-time critical infrastructure data.
Gain the EDGE Advantage
Simple & Efficient
- Highly Standardized data center, Simplified plug and play operation
- Ease of installation in existing location for new IT application
- “Zero U” rack based cooling solution with horizontal uniform cold air distribution with (N+N) redundancy
- Modular solution helps in easy relocation of Data Center with less downtime
Scalable & Secure
- Expandable IT infrastructure
- IT load capability from 3kW to 30kW using 1/2/4/6 racks
- IP-54 racks ensure protection against ingress of dust and water
- Safe load carrying capacity of 1400 kgs on enclosure frame and 1000 kgs on 19 inch mounting angles
- Unique 3-point locking system with ergonomic handle & unique safety key for front and back doors
Pre-Configured & Quicker Deployment
- Pre-engineered, standardized structures that can be easily configured
- Compliance to EIA 310 and IEC 297 standards
- Easy to install and configure with any network
- Closed loop circuit, “front to back” cooling solution up to 7kW per cooling unit with ambient temperature range +10℃ to +50℃
Value Proposition & Benefits
- Complete packaged data center inside a rack
- No loss of vertical “U” space inside the 19″ Rack
- No separate server room required for Edge Data Center Solution
- Remote monitoring and management system – Standard feature ensuring uptime, security and performance
- Less power consumption due to closed loop cooling
Why Rittal
Power and cooling systems with high availability designs (N+N), integrating best practices from international standards such as ASHRAE TC 9.9, NFPA 75, etc.
Guaranteed efficiency consisting of modules with outstanding performance.
Pre-configured and integrated package ready for assembly at customer premises, ensuring swift deployment within 3-4 weeks from the order date.
Achieve Low Total Cost of Ownership by deploying in modules of 1/2/4/6 racks, saving initial capital infrastructure costs. Customers can expand the Edge DC infrastructure as computing requirements increase in the future.

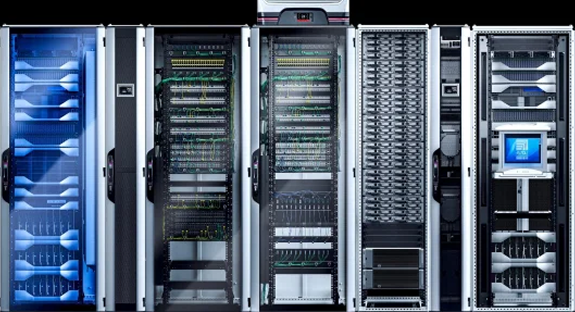

Explore Further into Rittal Edge Data Center Solutions
